Description

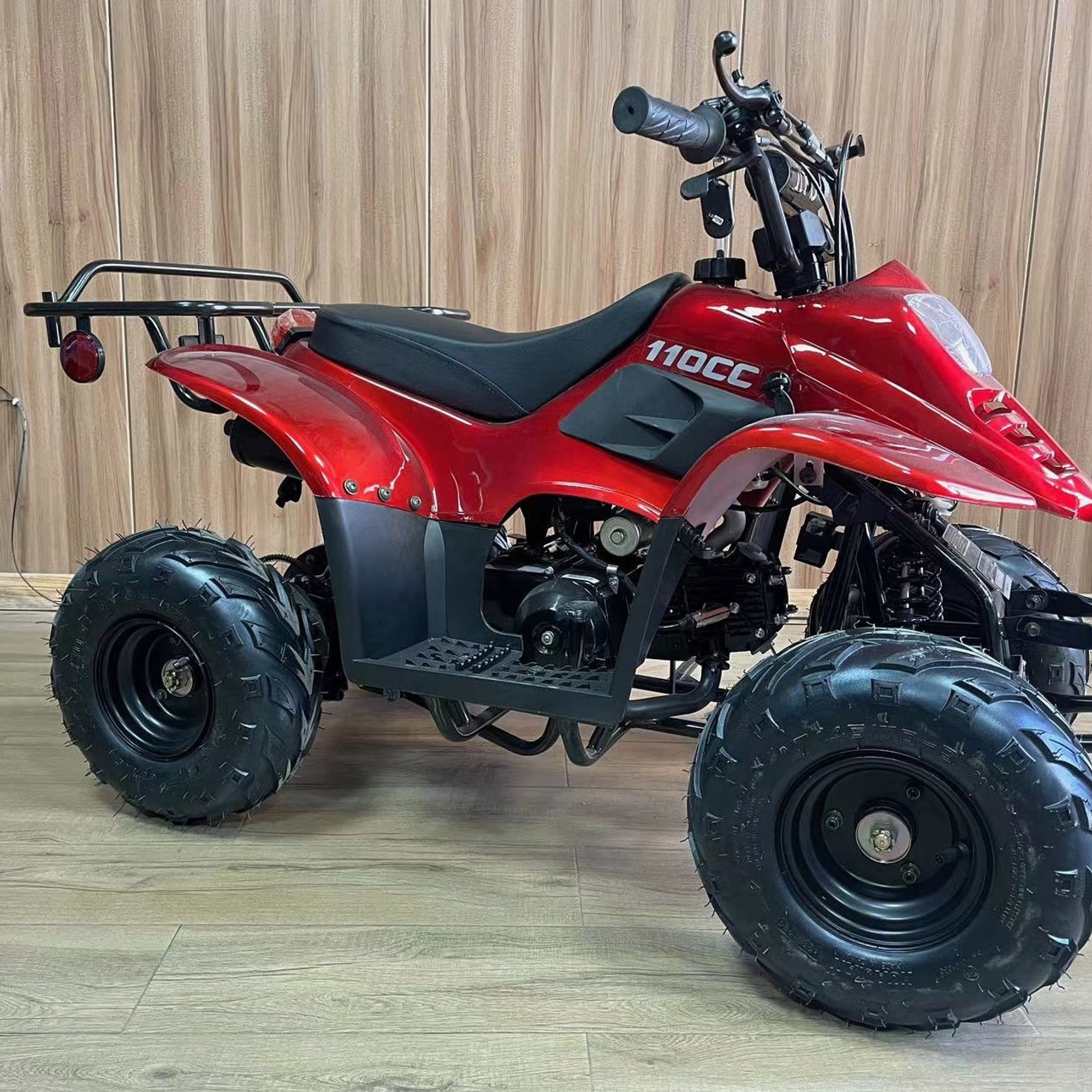

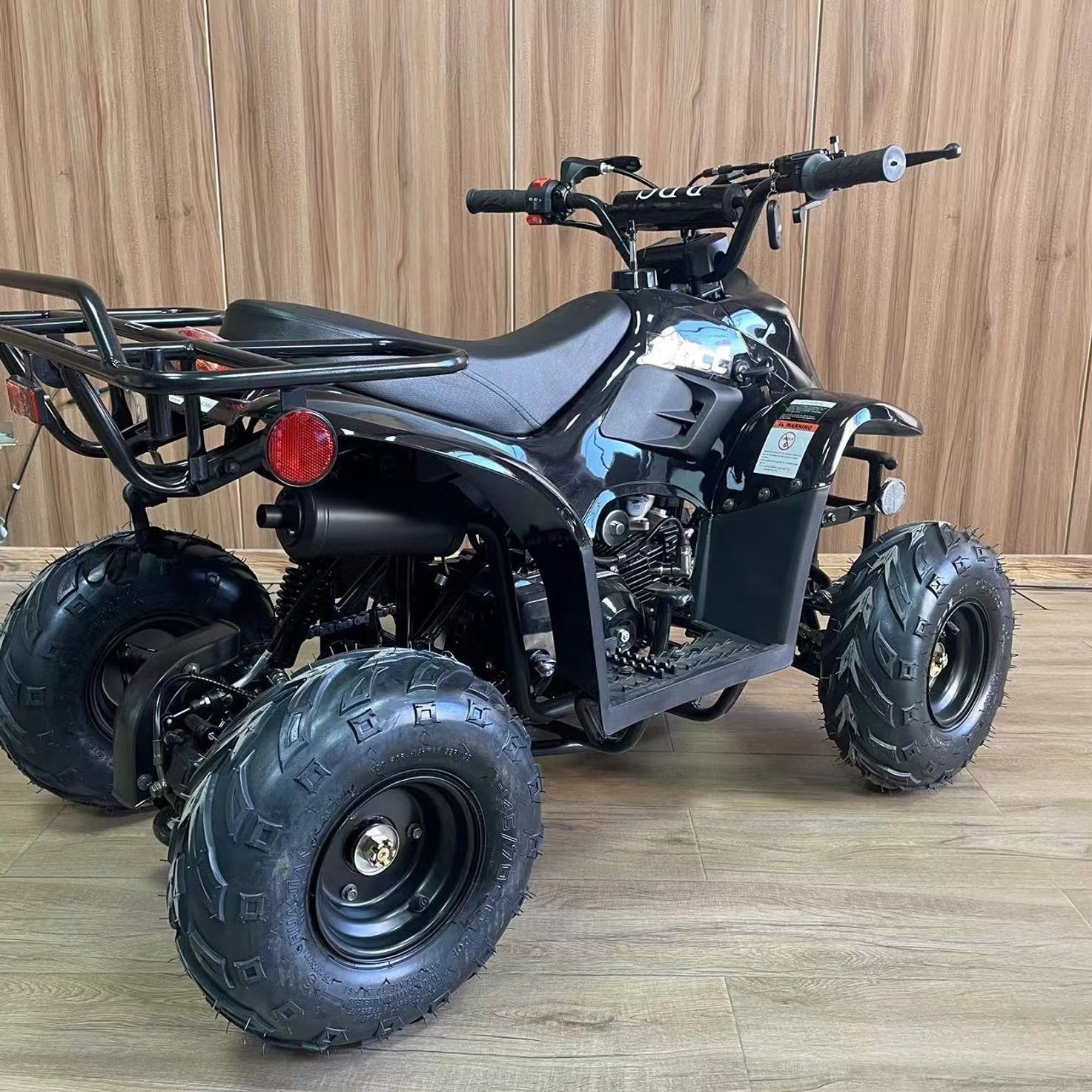

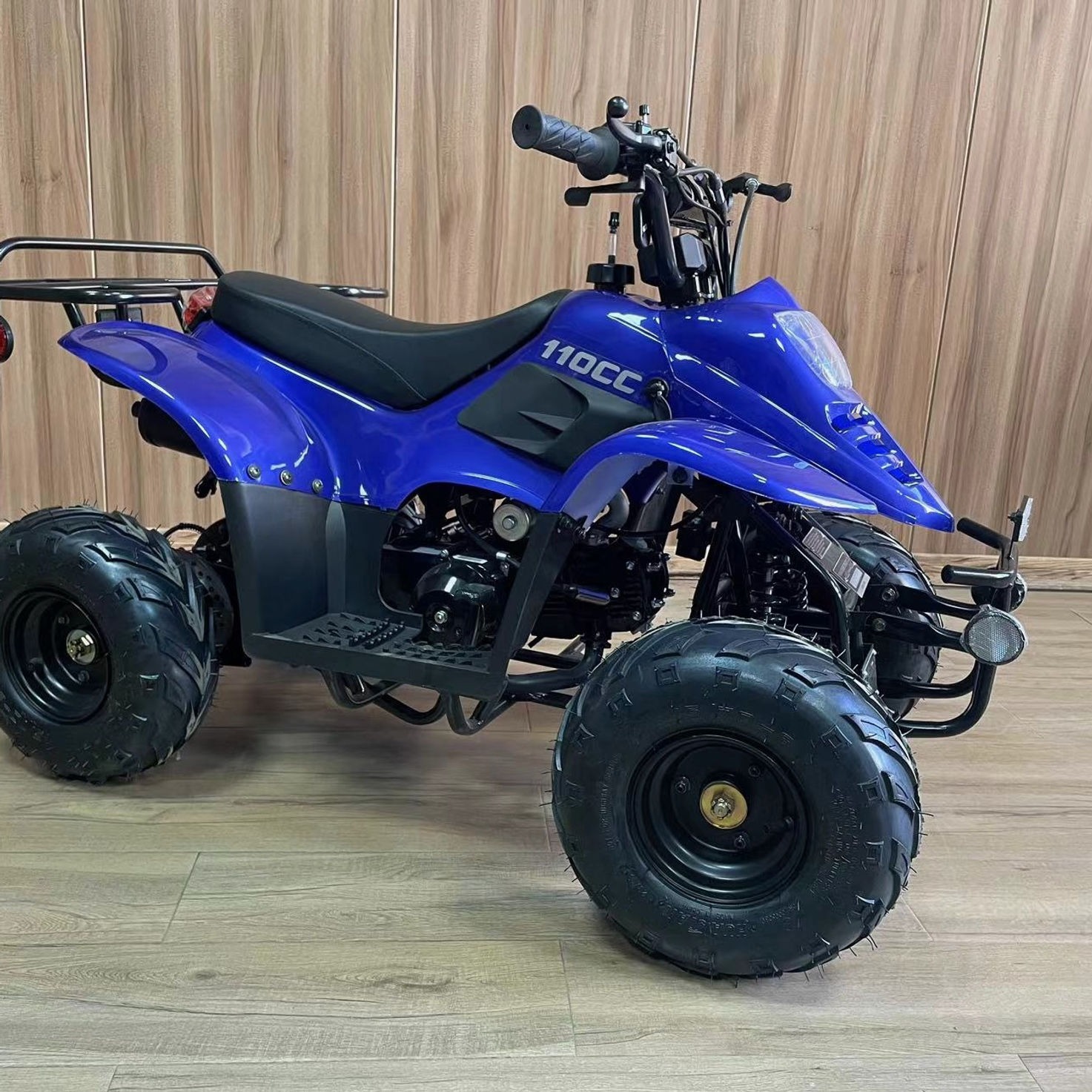

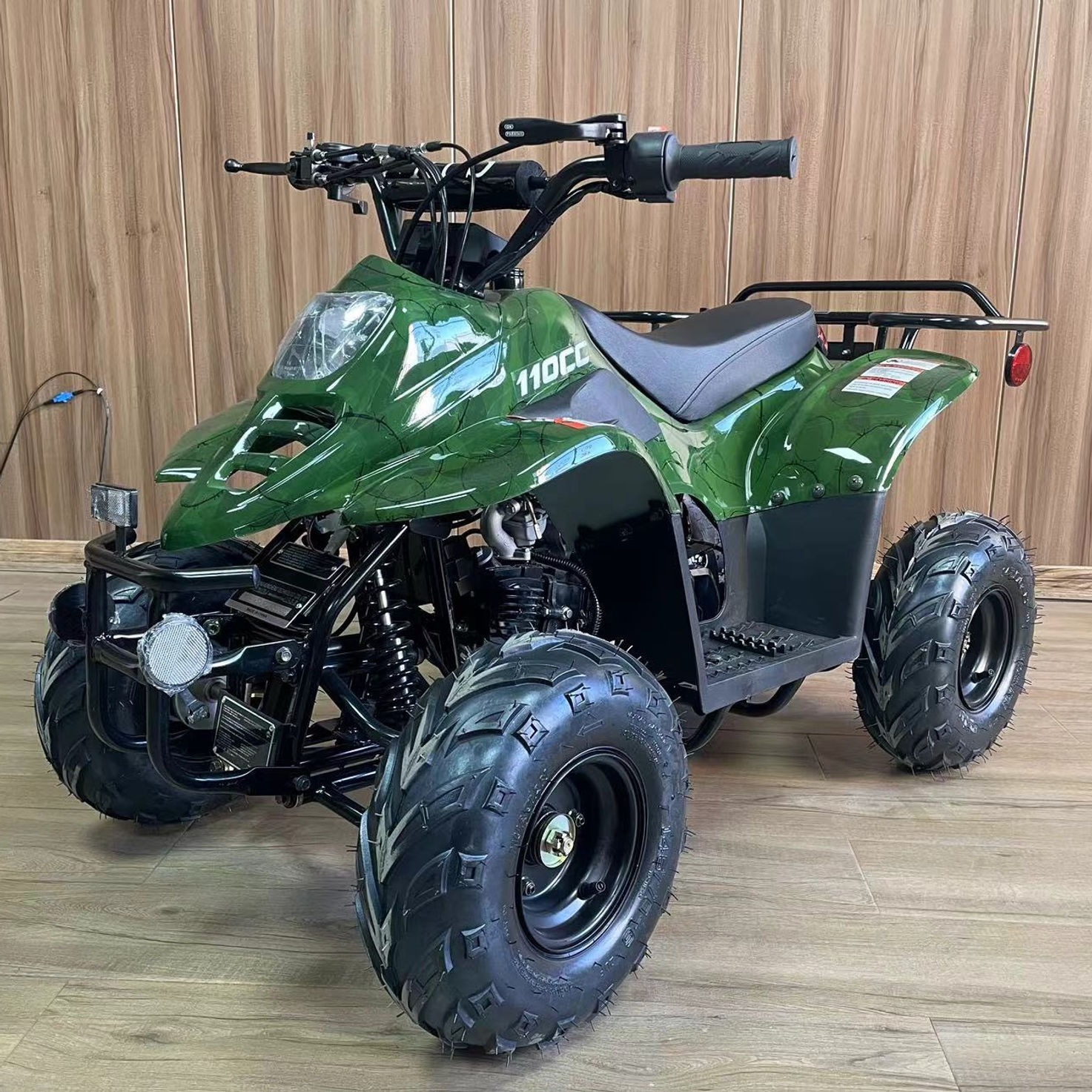

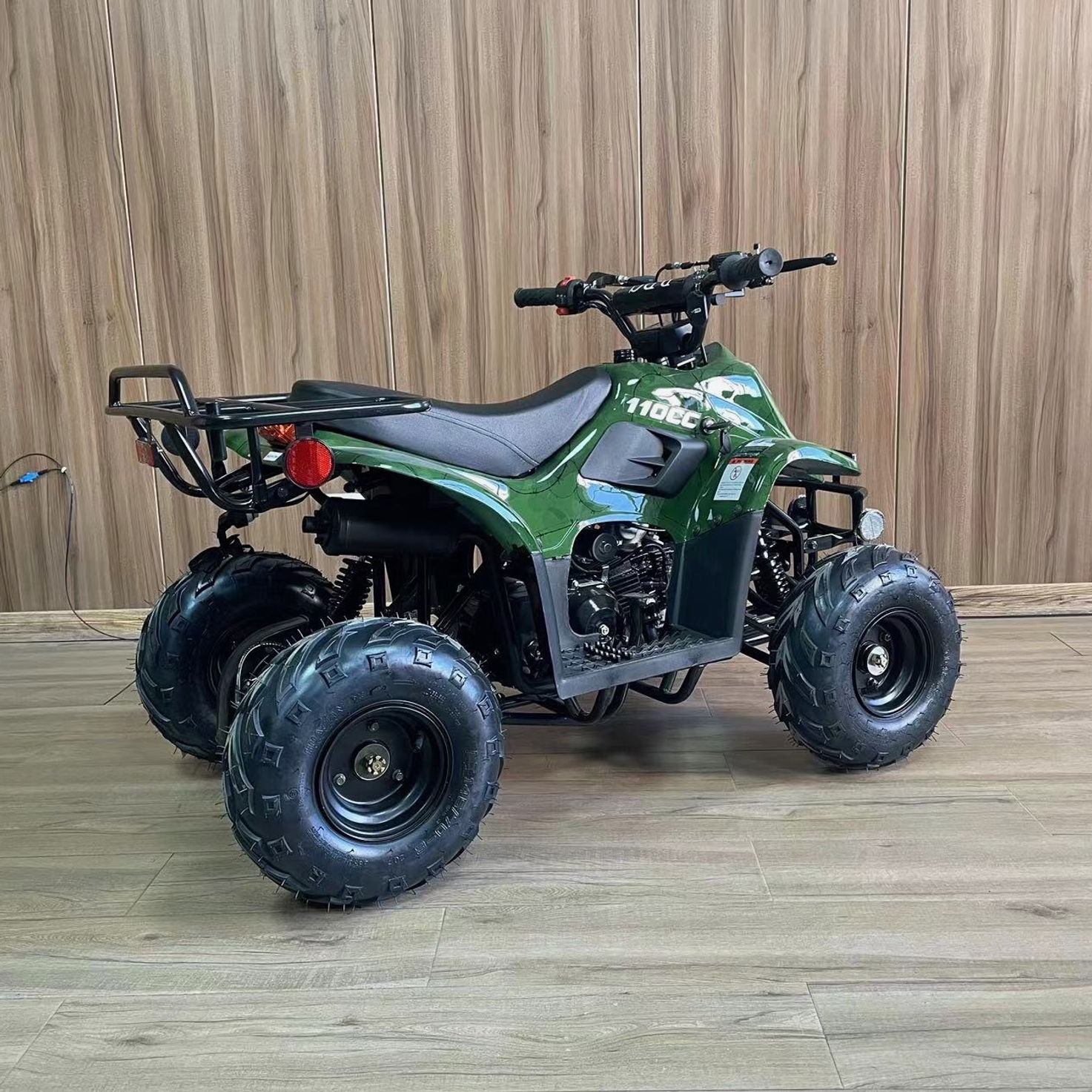

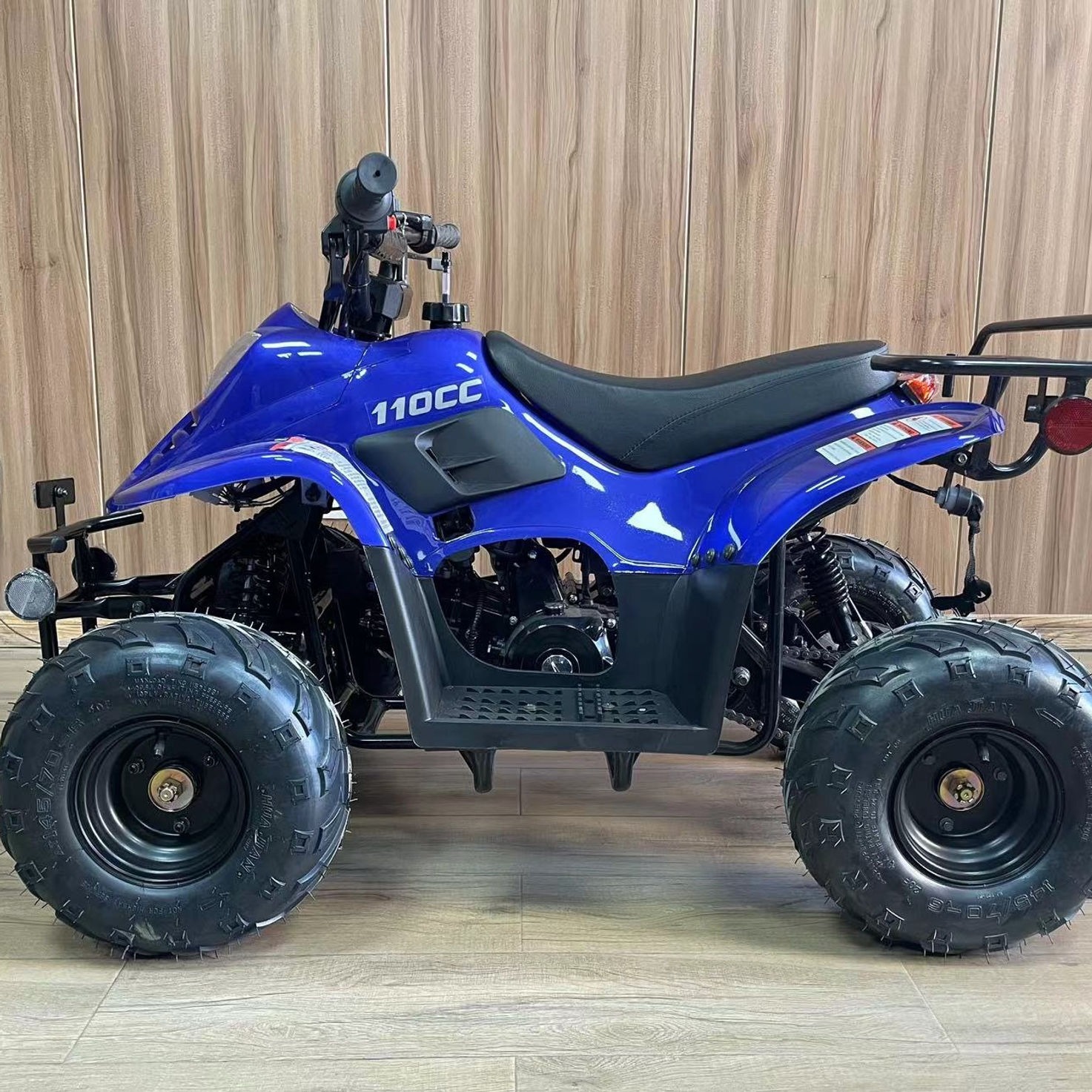

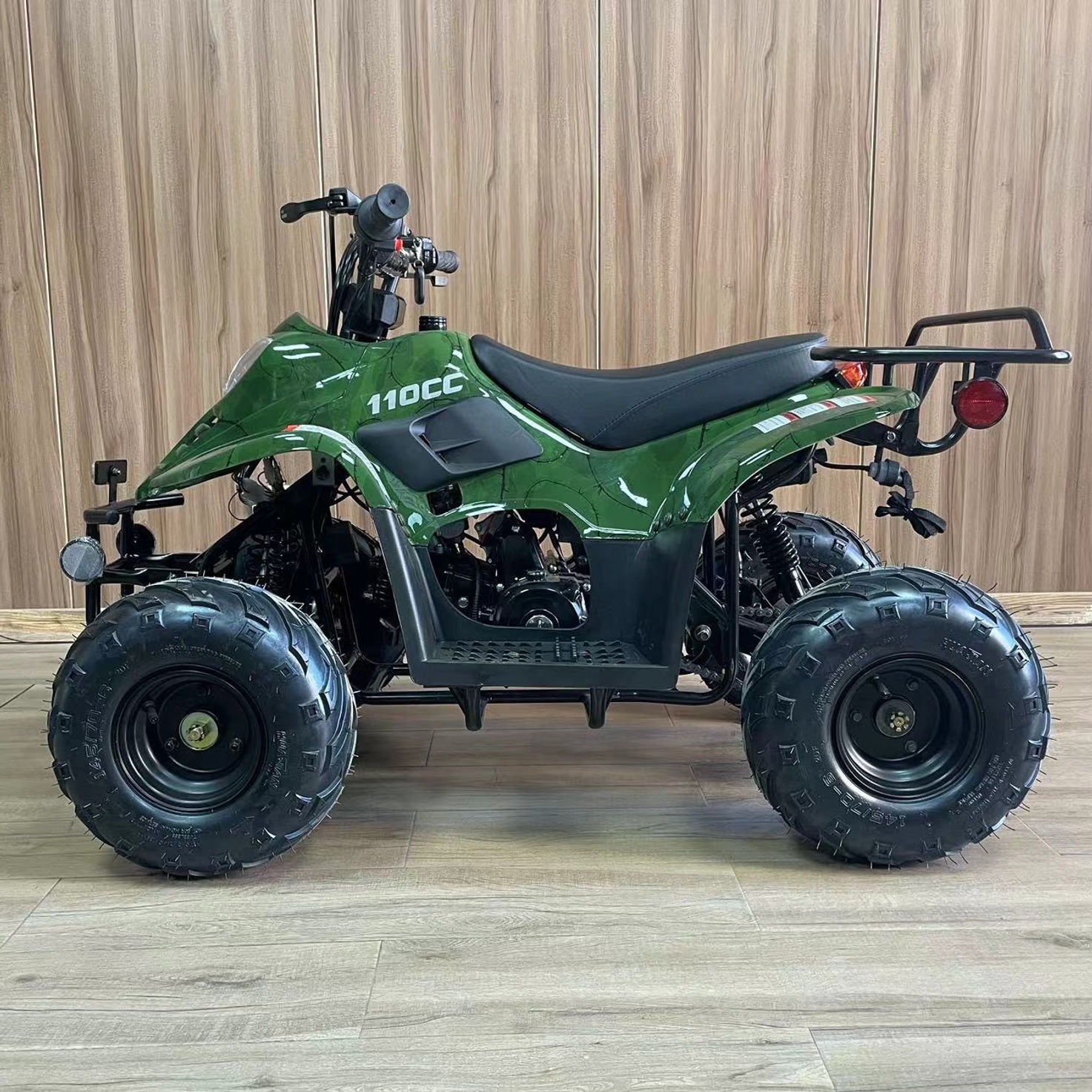

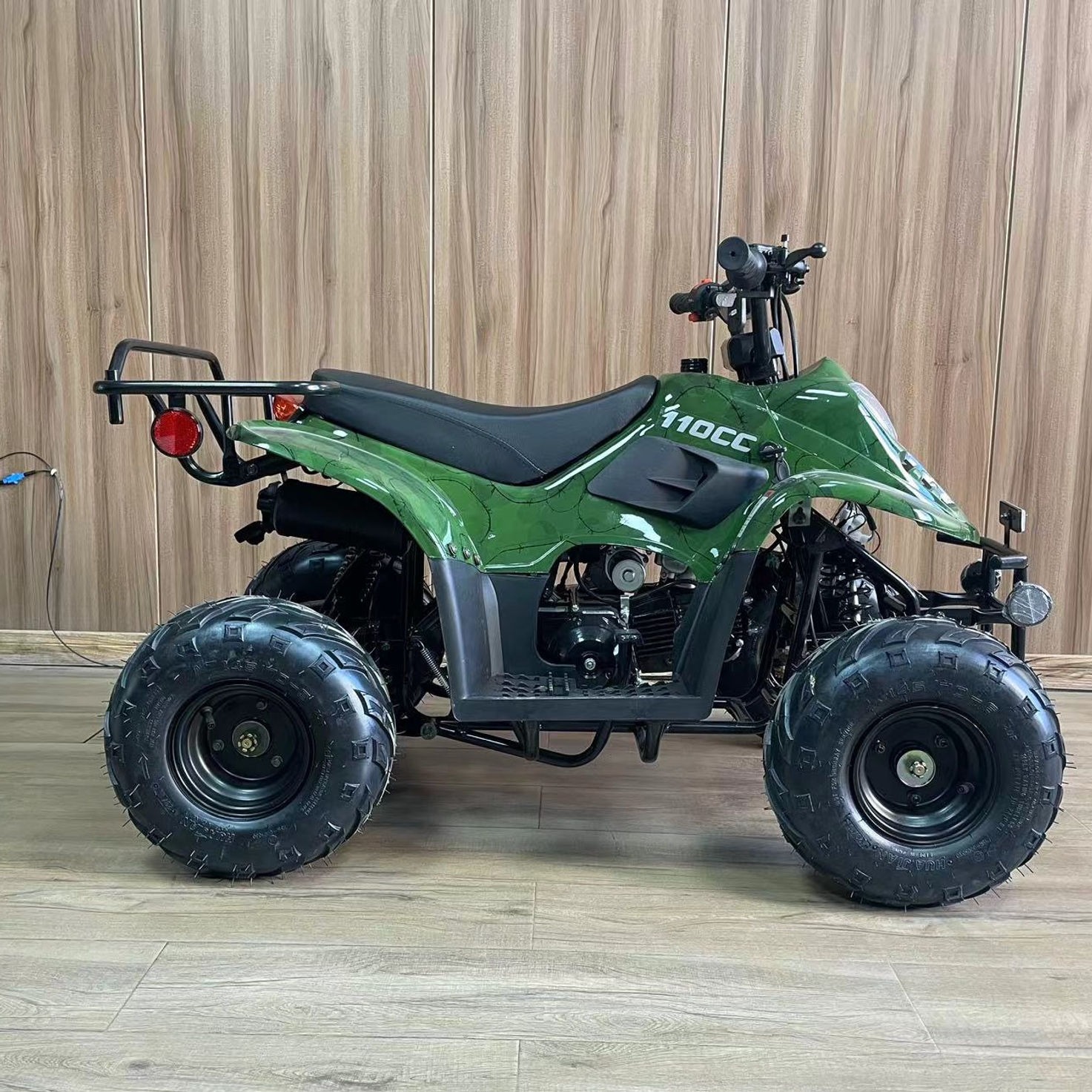

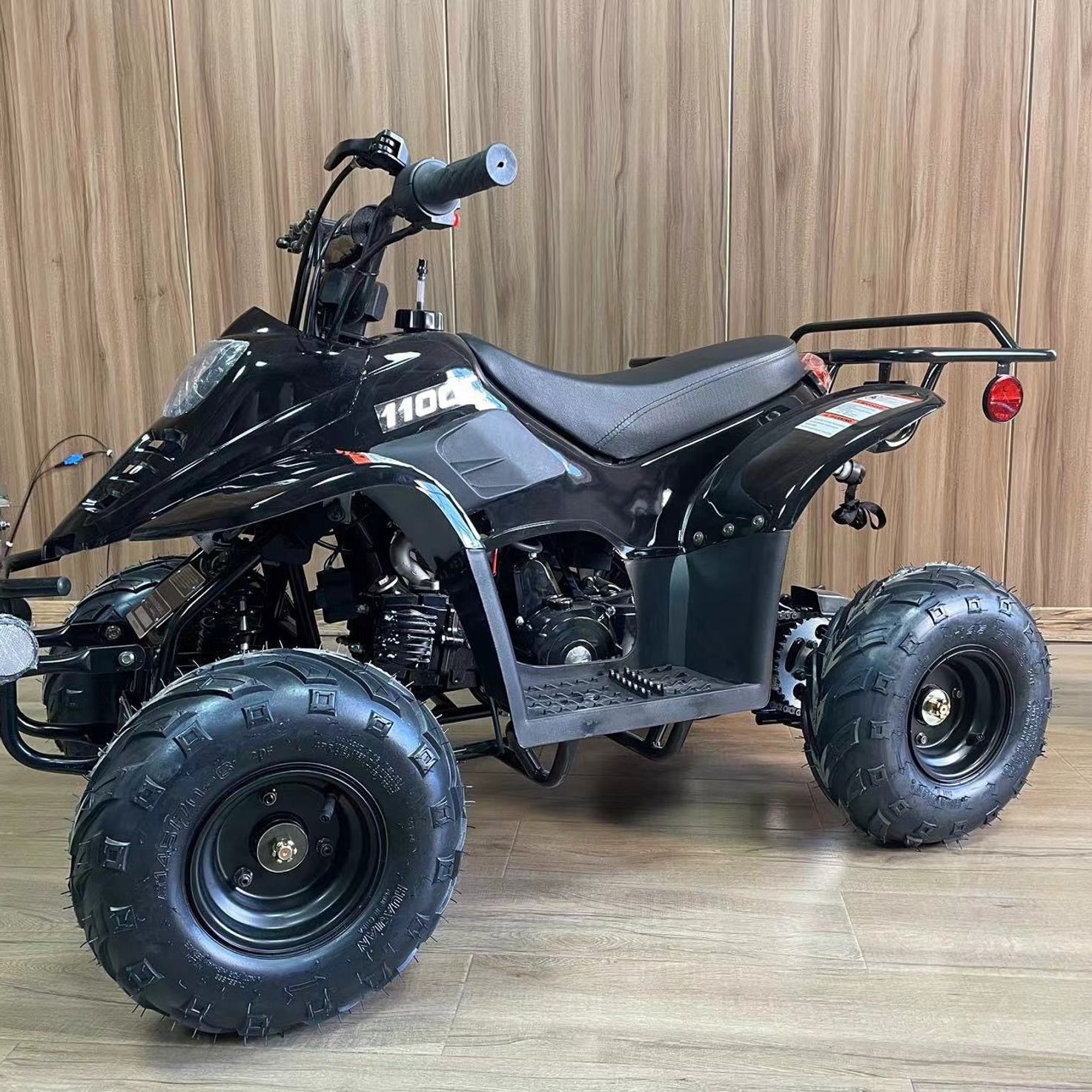

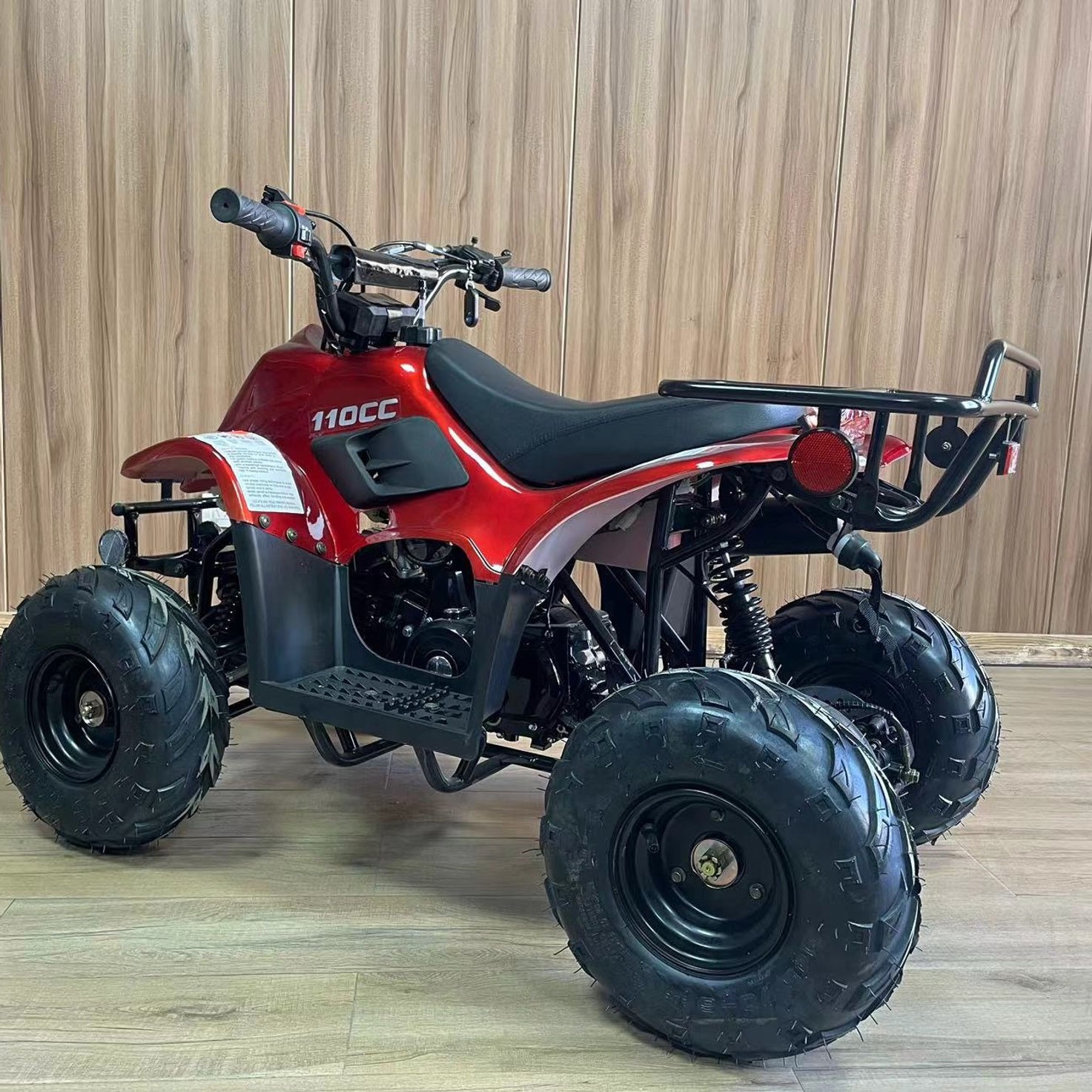

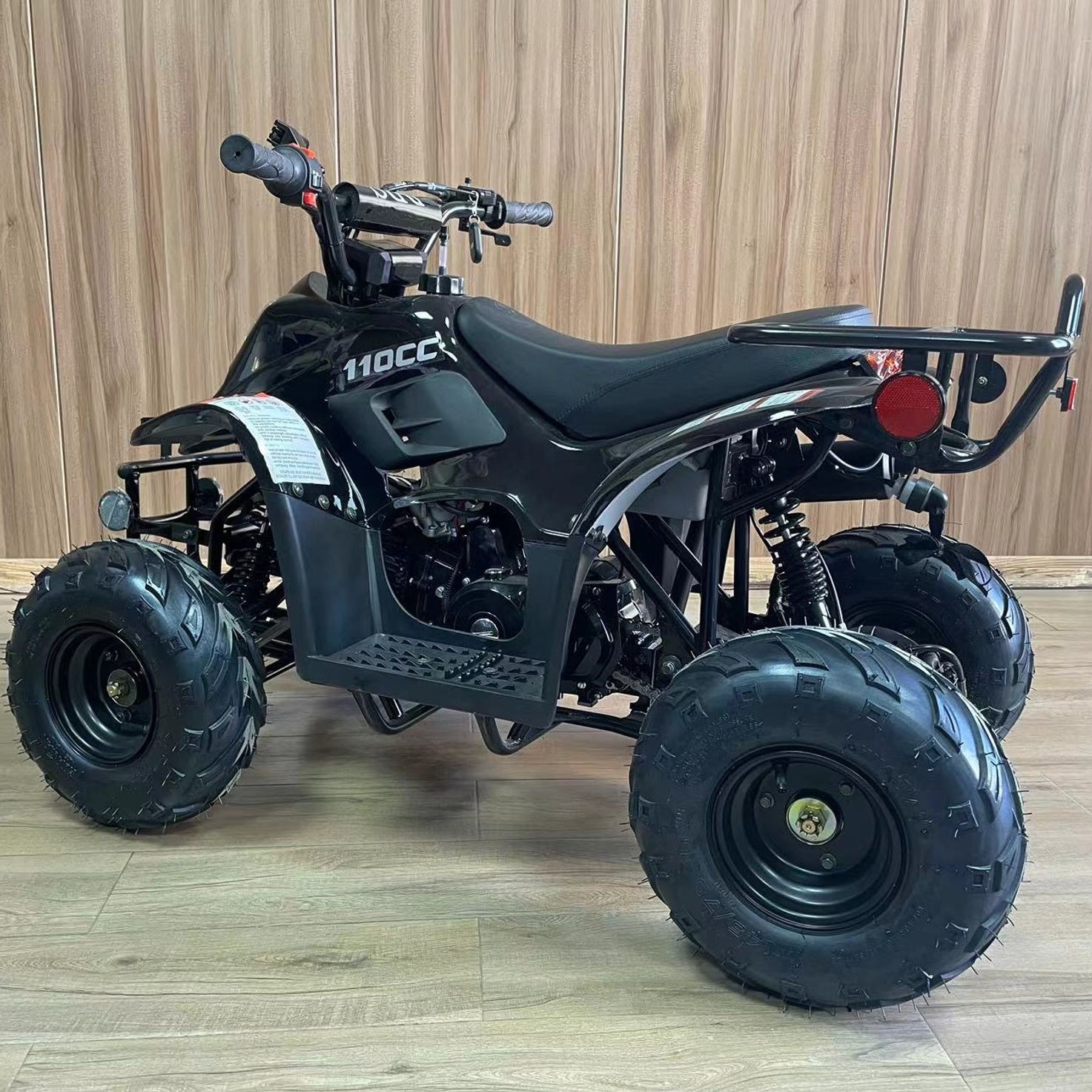

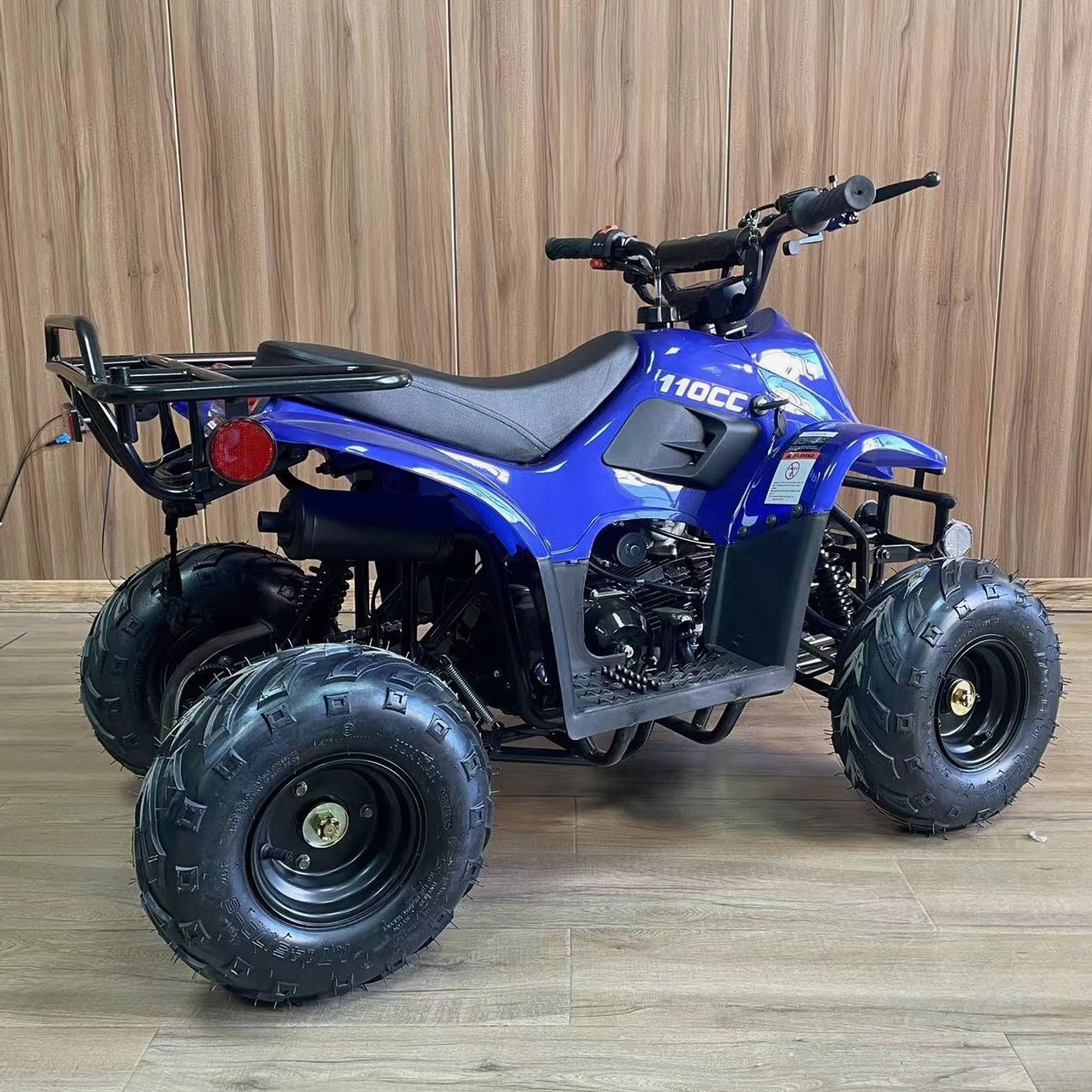

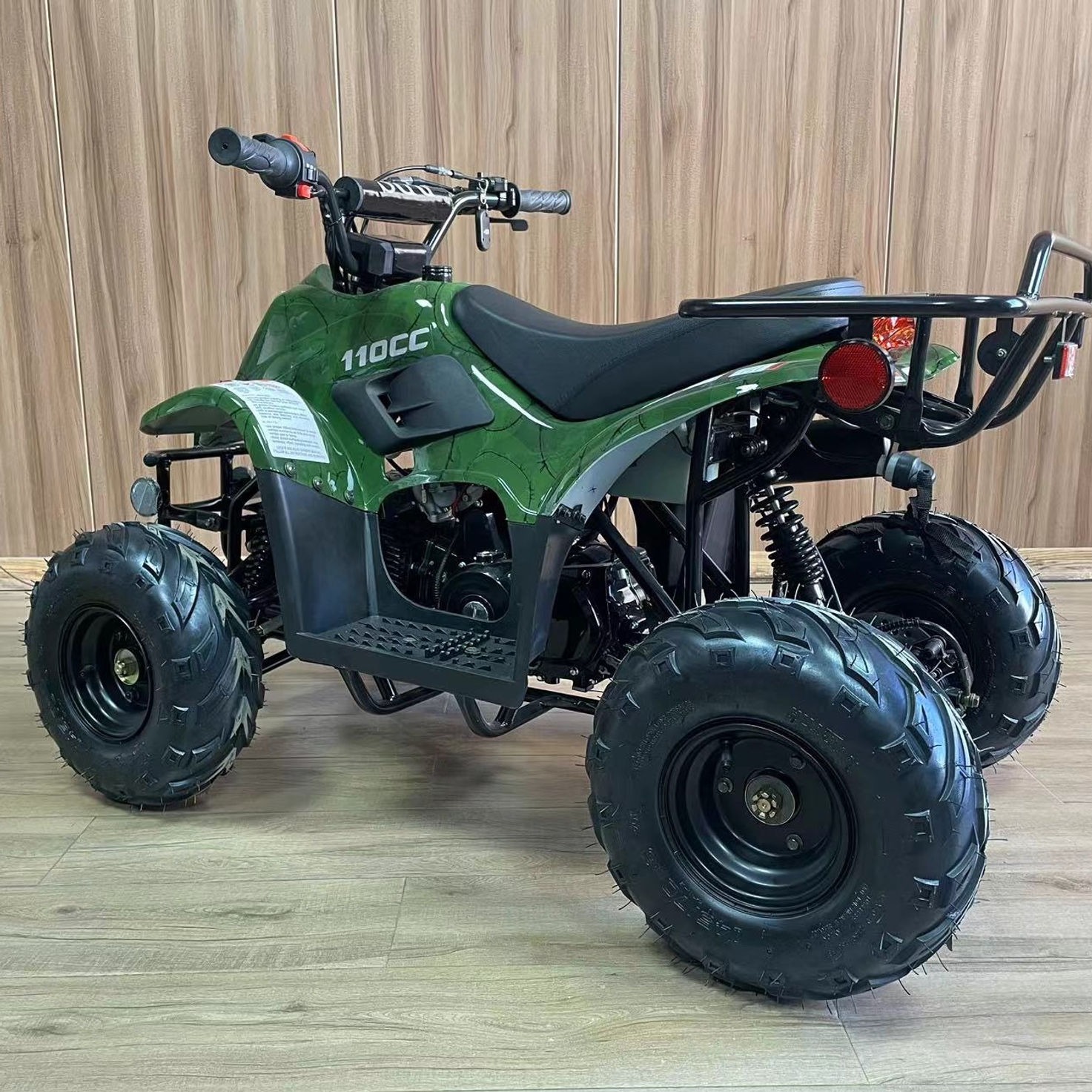

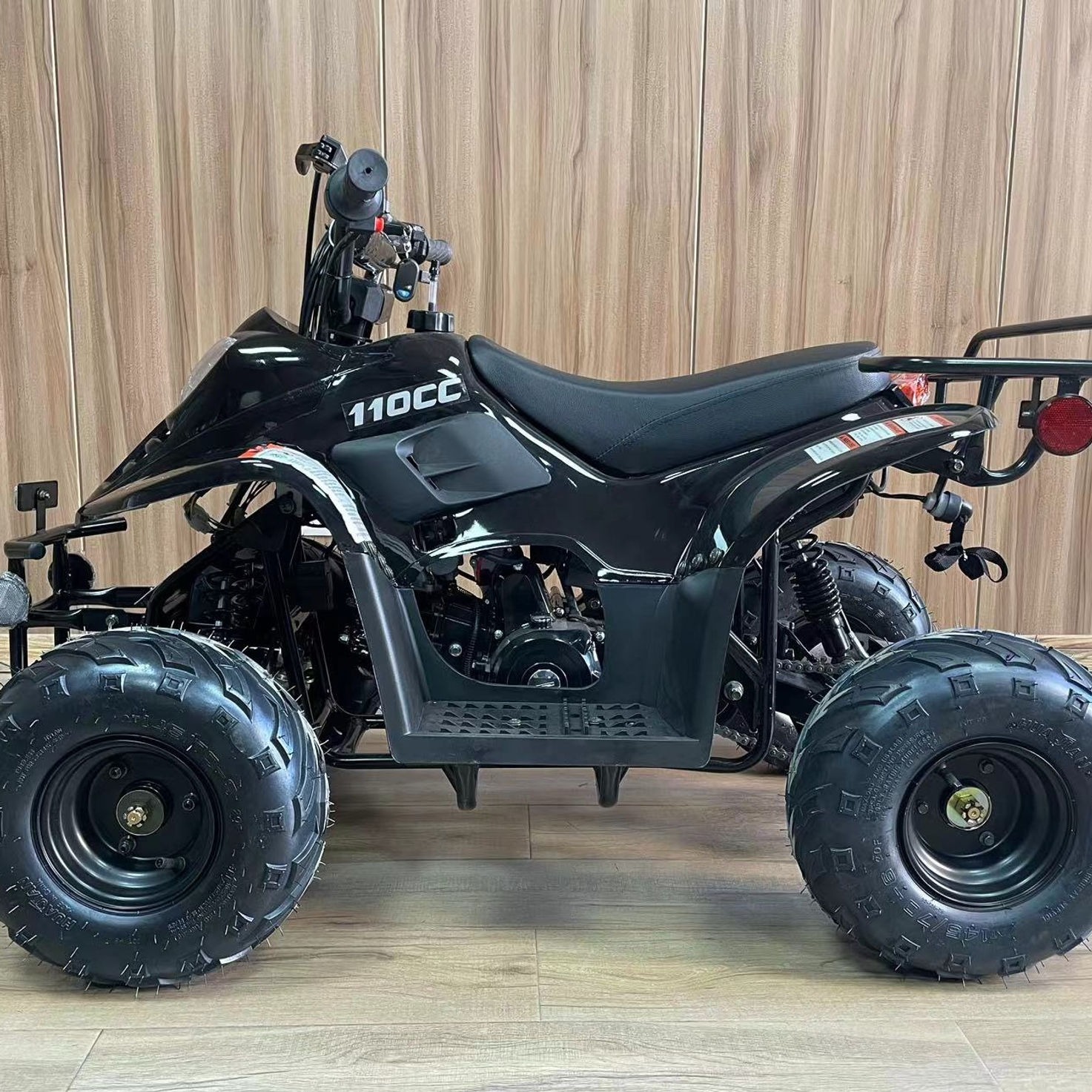

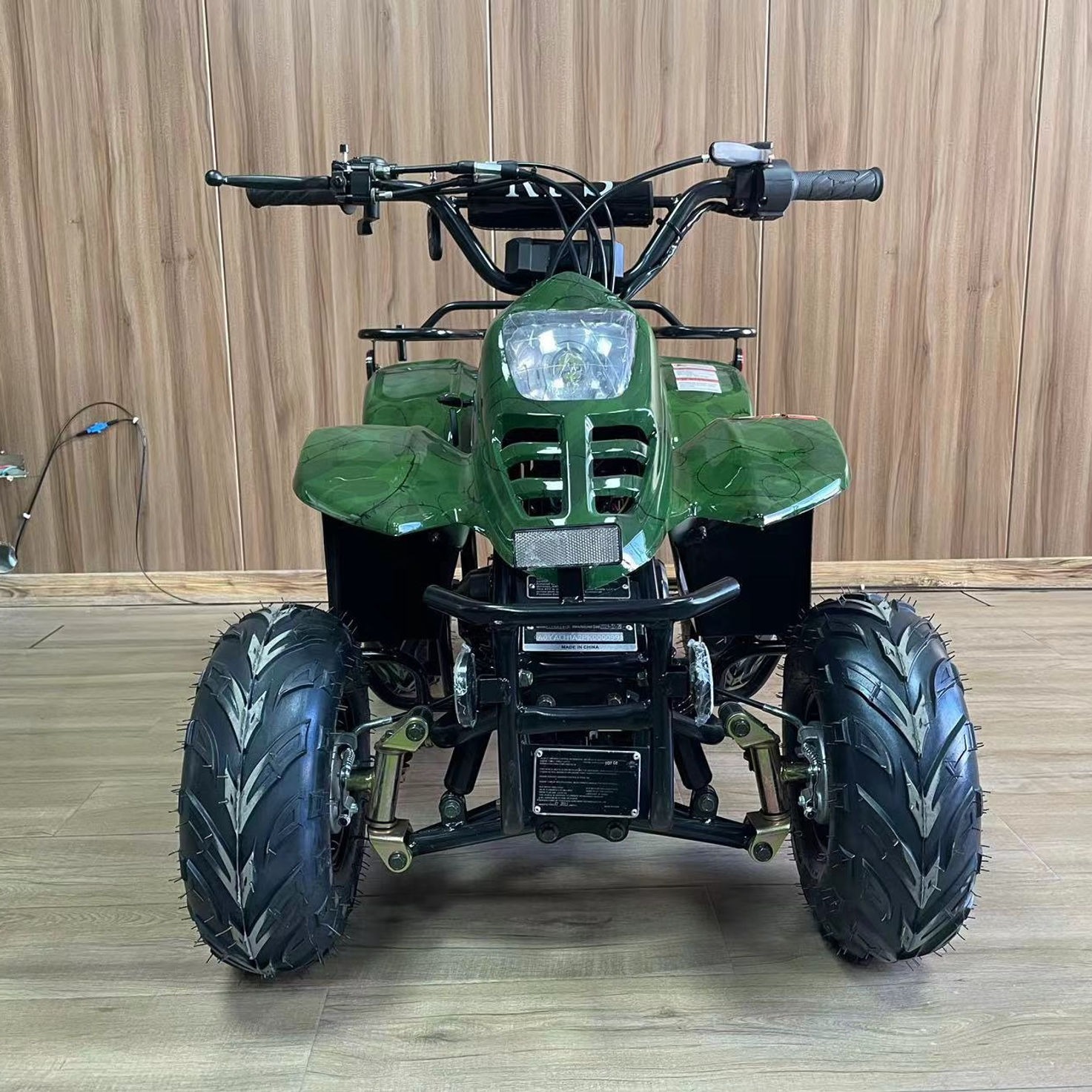

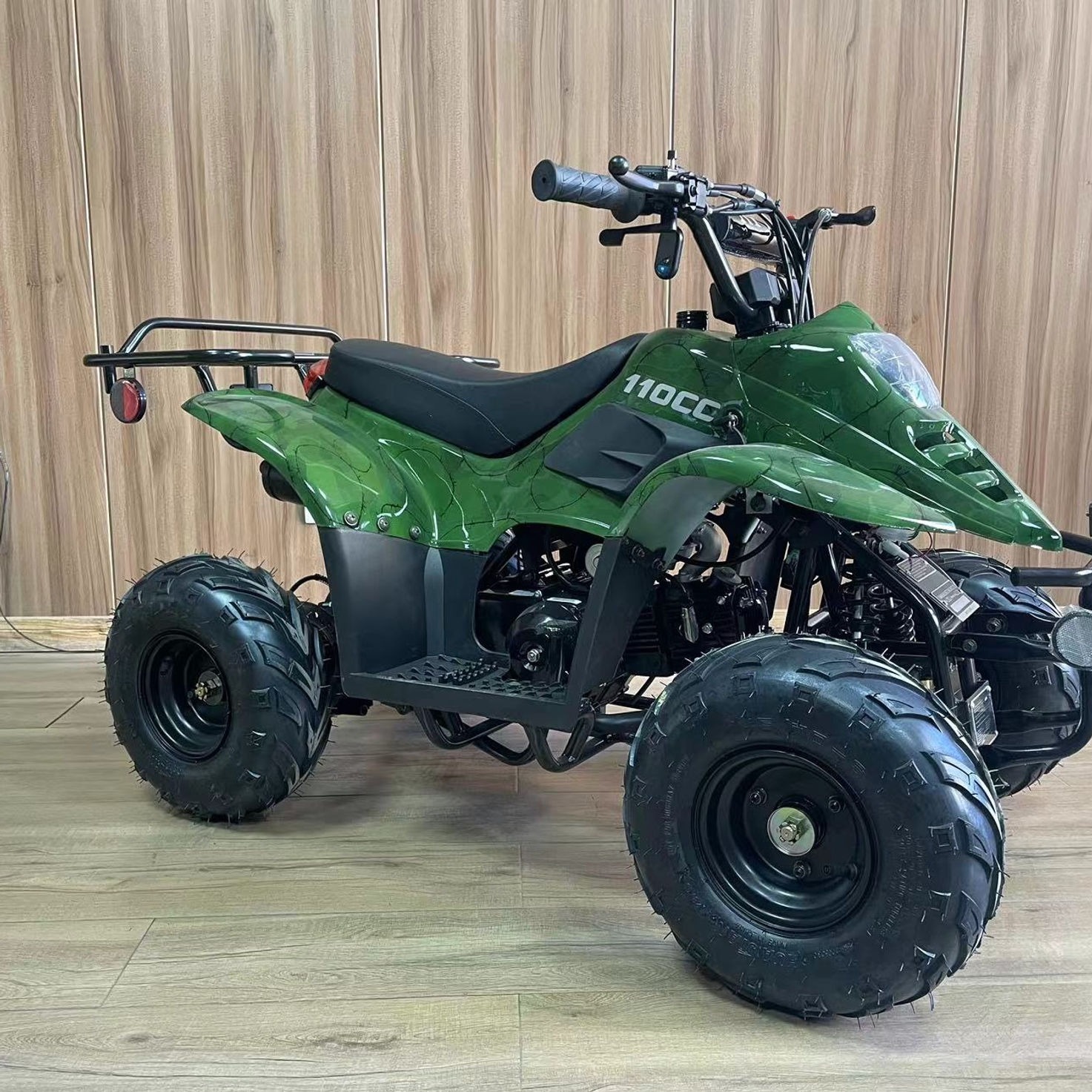

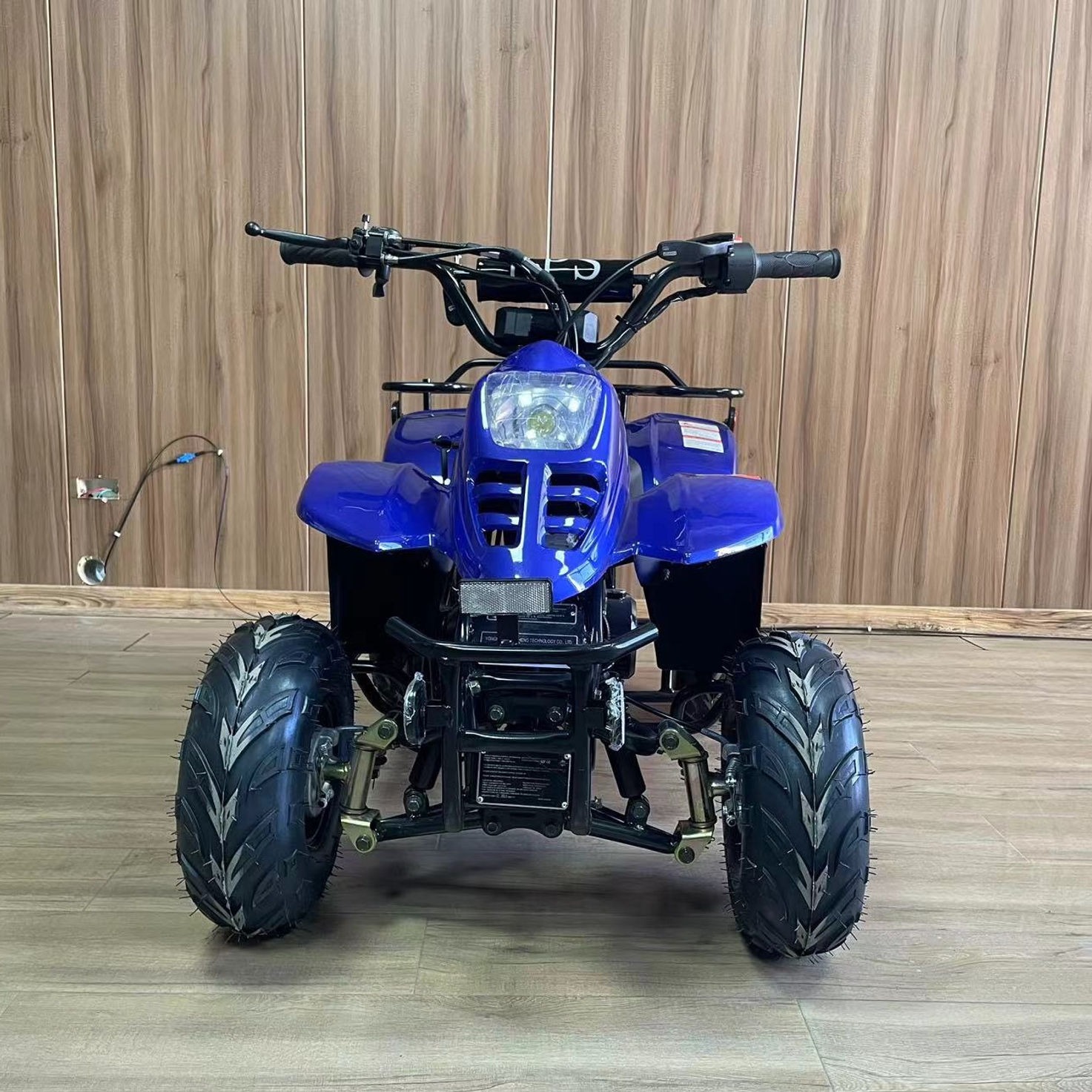

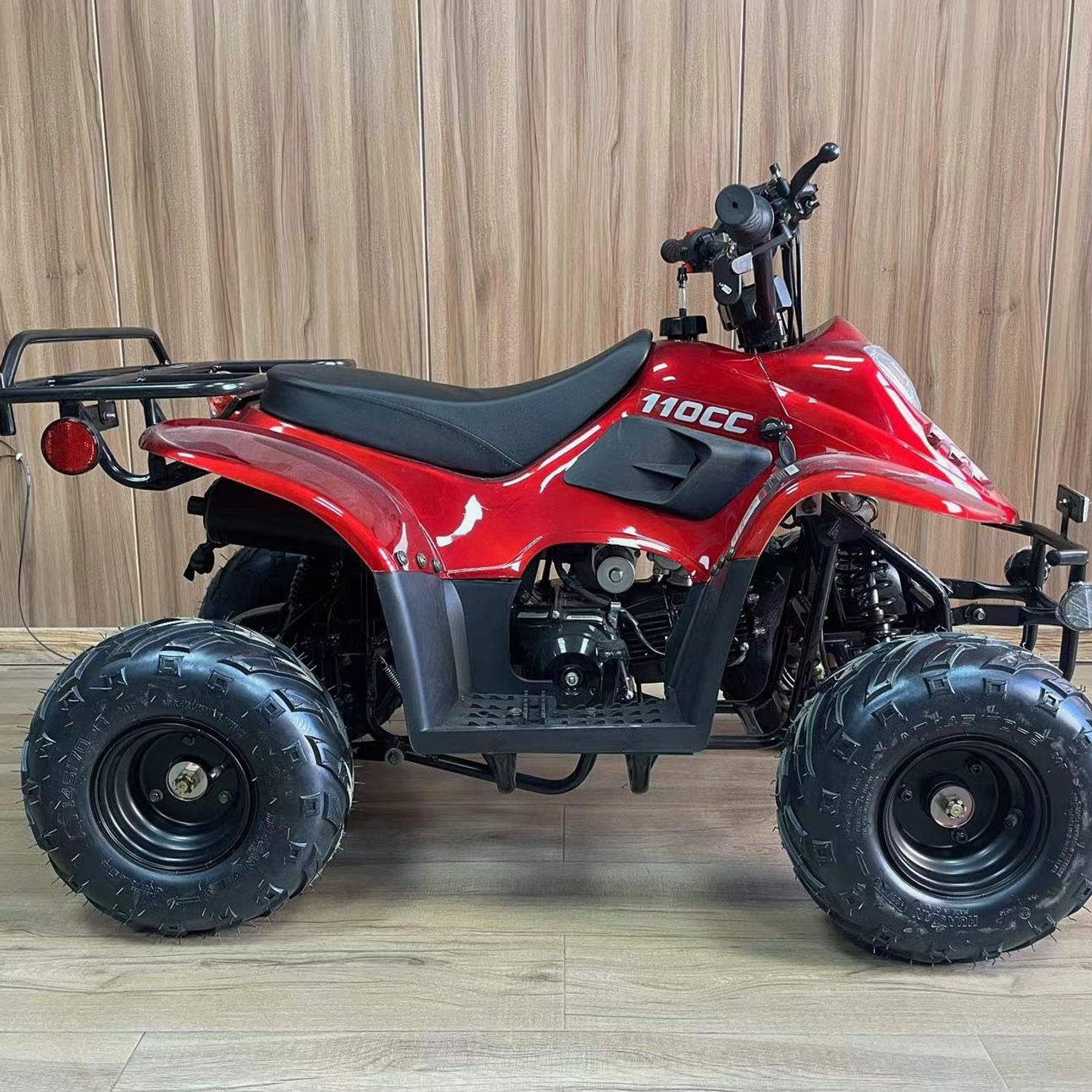

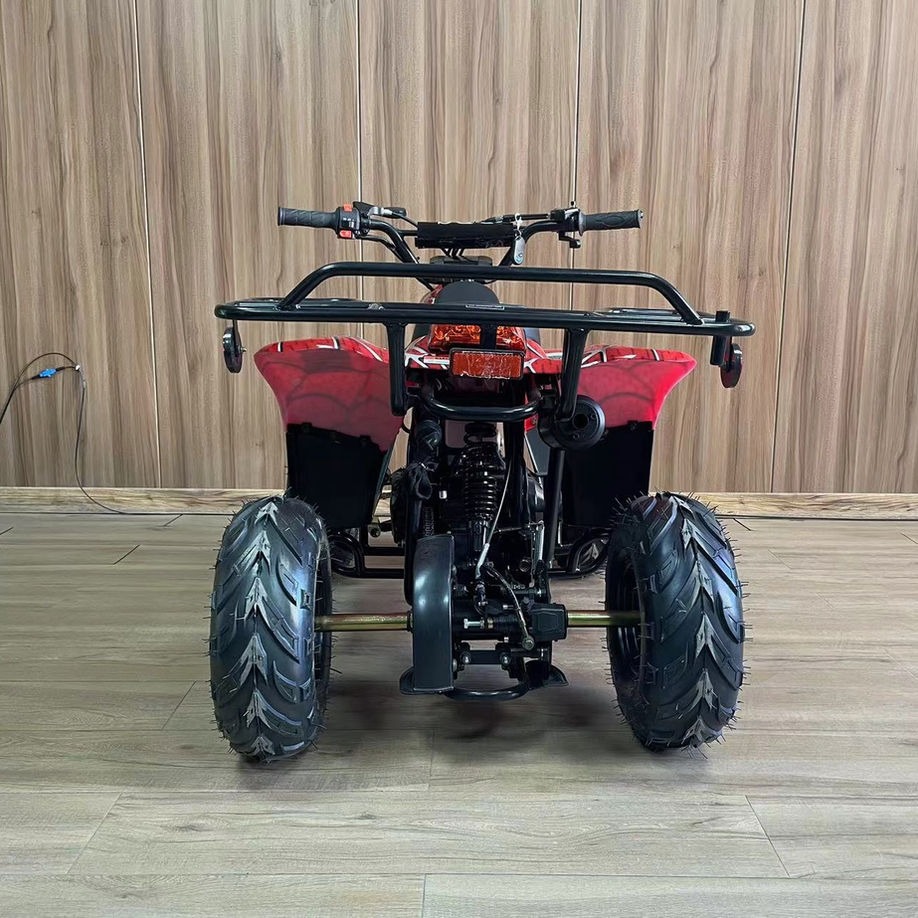

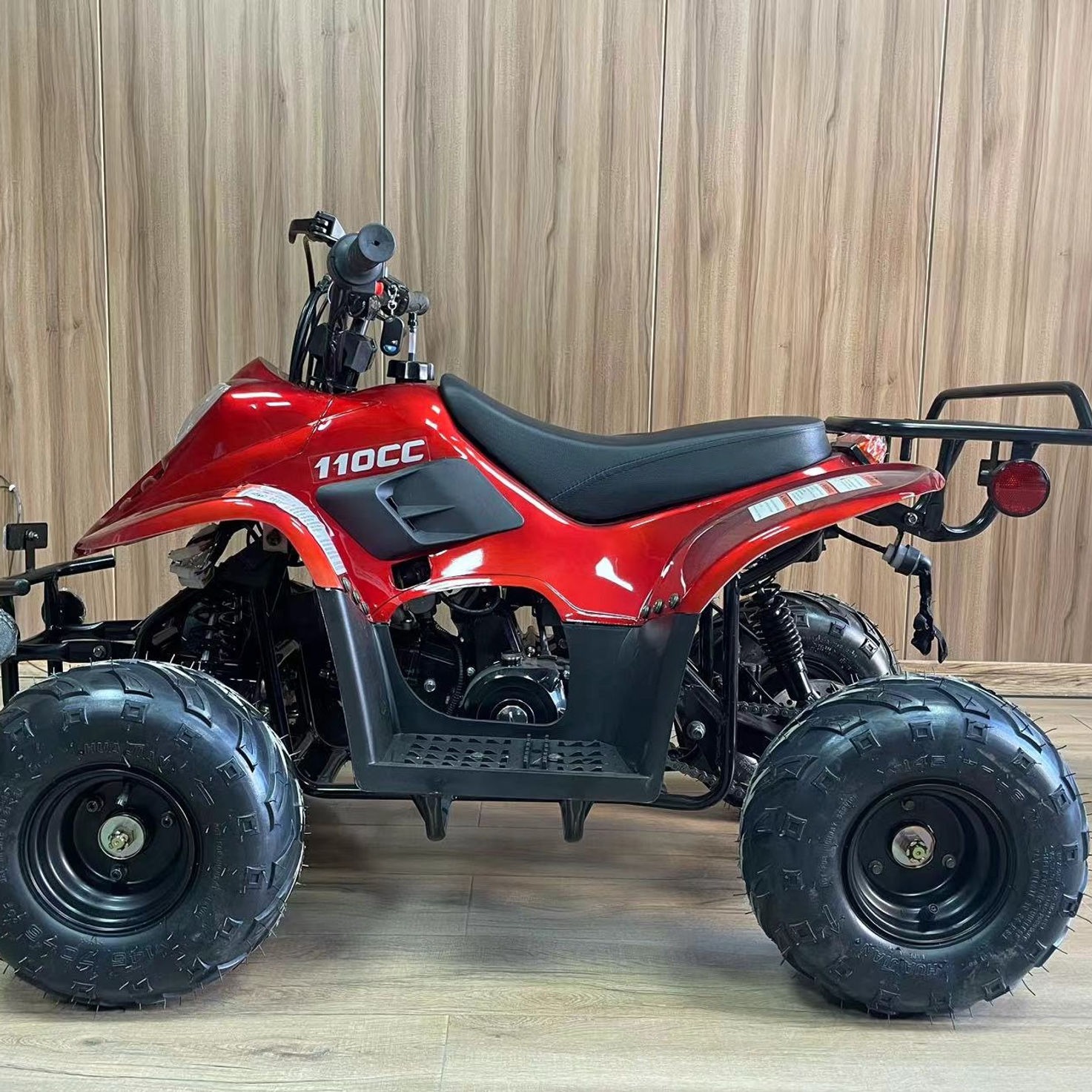

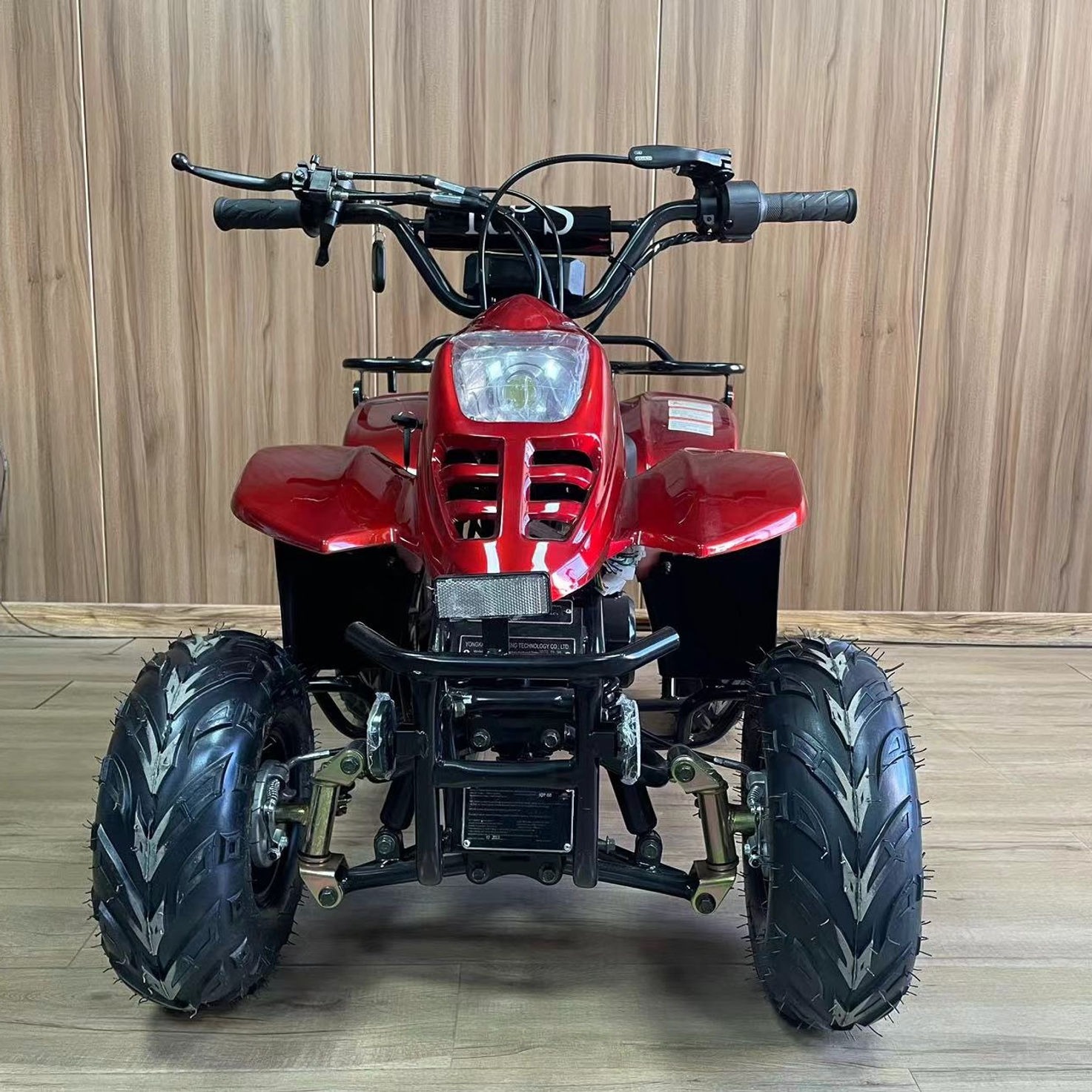

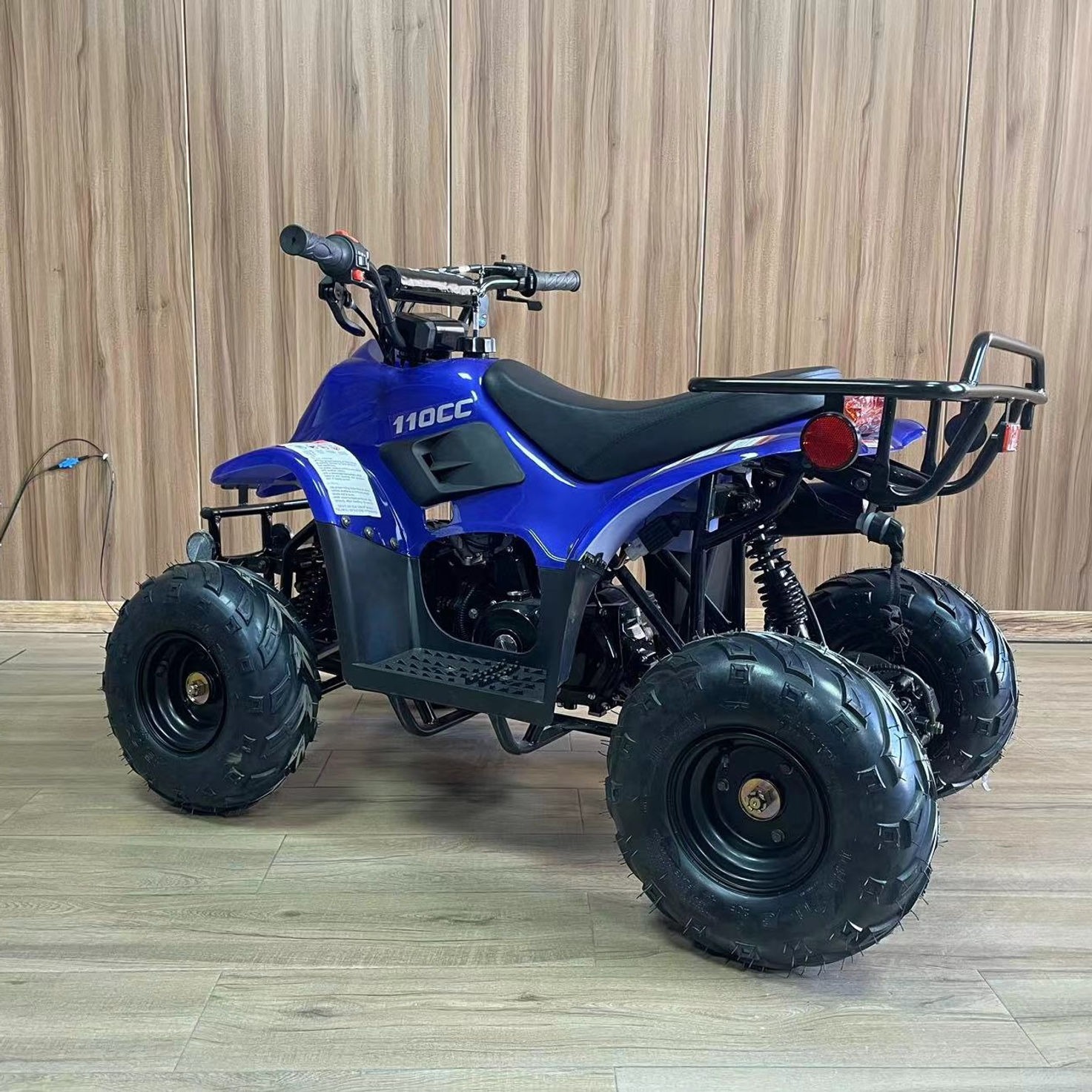

ATV 110 CC – RPS Dinosaur
Engine / Drive Train Specifications
Engine: 107cc, 4-stroke
Cylinder Arrangement: Single cylinder
Max Horsepower: 6.44HP/7500RPM
Max Torque: 5.163ft-lb/5500RPM
Bore × Stroke: 52mm x 55.5mm
Compression Ratio: 9.1:1
Cooling System: Air cooled
Transmission: Fully automatic
Start System: Electric start
Ignition: CDIFinal Drive: Chain drive
Max Limited Speed: 10MPH(Y-6+ ATV)
Battery: 12V4Ah
Frame / Body / Suspension / Brakes
Front Suspension: Dual A-Arm with dual shock absorbers.
Rear Suspension: Swing arm with central single shock absorber.
Front Brake: Drum brake.
Rear Brake: Hydraulic disc brake.
Front Tires: 14.5×7-6
Rear Tires: 14.5×7-6
Capacities / Dimensions
Max Load: 143lbs
Gross Weight: 172lbs
Net Weight: 168lbs
Overall Length: 49.21inches
Overall Width: 28.74inches
Overall Height: 33.86inches
Carton Dimensions (L × W × H): 45.28×26.77×25.6inches
Seat Height: 21.26inches
Wheelbase: 33.07inches
Ground Clearance: 2.95inches
Gas Tank Capacity: 0.53gal
Fuel Consumption: 94.08mpg
Available colors: Burgundy, Blue, Black, Red/Spider, Blue/Spider, Black/Spider, Green Camo, Leaf Camo, Pink Camo, Purple Camo.
